Aluminum Wheel

ALUMINUM WHEEL

1. Raise and support the vehicle so that tire and wheel assembly clears ground level. Maintenance
2. If the vehicle is equipped with wheel center caps that cover the wheel nuts, remove the cap with an appropriate removal tool utilizing the notch located between the wheel and the outer edge of the cap. Use care not to damage the wheel coating.

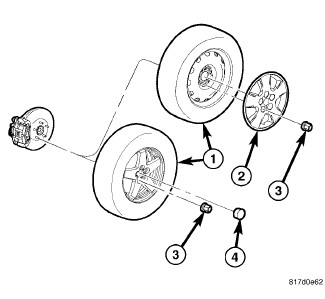

3. Remove five wheel mounting (lug) nuts (3) from studs.
4. Remove tire and wheel assembly (1) from hub.
