Hood Prop Rod - Installation

INSTALLATION

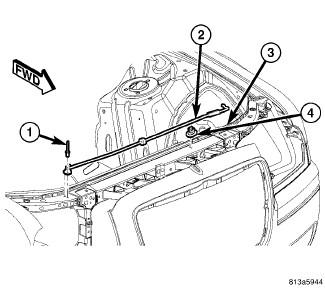

1. Position the hood prop rod (2) pivot bracket to the right side of the headlamp mounting crossmember (3).
2. Secure the pivot bracket to the headlamp mounting crossmember with a new blind rivet (1).
3. Engage the prop rod into the rod clip (4) on the left side of the headlamp mounting crossmember.
4. Close the hood.
