Instrument Panel Glove Box - Installation

INSTALLATION

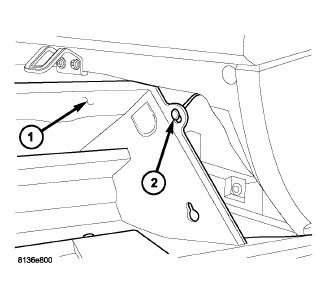

1. Position the glove box bin (1) into the vehicle.
2. Turn the glove box bin sideways and install the support strap and retainer assembly (2) onto the outboard end of the bin.

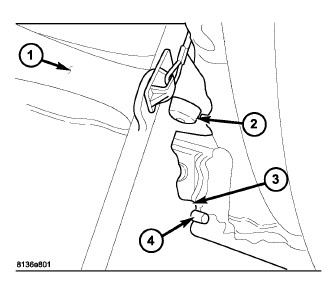

3. Engage the glove box bin hinge hooks (3) onto the instrument panel hinge brackets (4) located at each end of the glove box bin (1) and pivot the bin upward.
4. To engage the glove box stops (2), push inward on both sides of the glove box bin and pivot the glove box into the instrument panel.
5. Close the glove box bin.
