Front






REMOVAL





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove the front seat. Seat - Removal
3. Remove the lumbar and recliner handles (1).
4. Remove the screws and remove the side shields (2).





5. Remove the belt buckle.

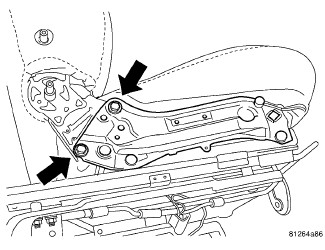

6. Remove the seat back bolts from both sides and remove the seat back from the seat frame.
