Wireless Ignition Node Receiver - Installation

INSTALLATION

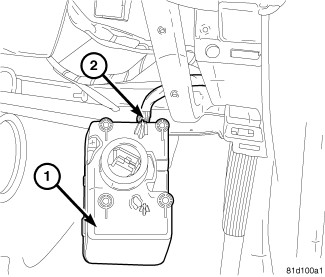

1. Reconnect the electrical connector (1) to the Wireless Ignition Node (WIN) and position the WIN back into the instrument panel.

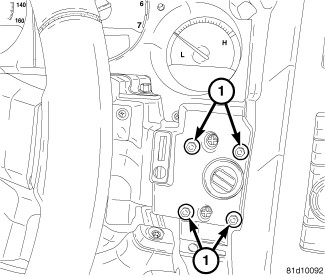

2. Install the four screws (1) through the instrument panel into the WIN.
3. Install the instrument panel trim cover. Ensuring that the cover snaps into the securing clips.

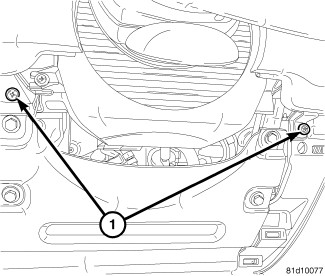

4. Install the two lower instrument panel screws (1).
5. Install the lower steering column cover reinforcement and the steering column trim coverSteering Column Opening Cover - Installation.
6. Connect the battery negative cable.

7. Program the WIN following the Module/Programming Order Replacement Guide and Module Programming procedures Module/Programming Order Replacement Guide
