Power Seat Lumbar Switch - Removal

REMOVAL

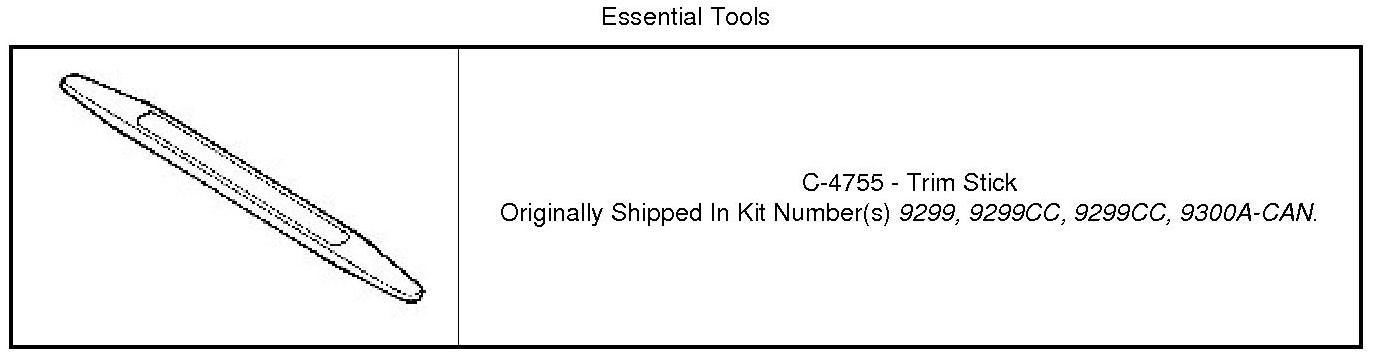

Special Tools:






WARNING: Disable the airbag system before attempting any front seat diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: Driver seat shown. Passenger seat similar.





1. Position the seat being serviced all the way forward.
2. Disconnect and isolate the negative battery cable.

NOTE: It is not necessary to remove the seat belt anchor from the seat when servicing the power lumbar control switch.

3. Remove the outboard seat cushion side trim panel (5) from the seat (Refer to Body/Seats).
4. Using Trim Stick or equivalent, carefully disengage the four tabs (2 and 4) that secure the lumbar control switch (1) to the seat cushion side trim panel.
5. Disconnect the electric connector (3) from the lumbar control switch and remove the switch.
