Pinion Depth

PINION DEPTH

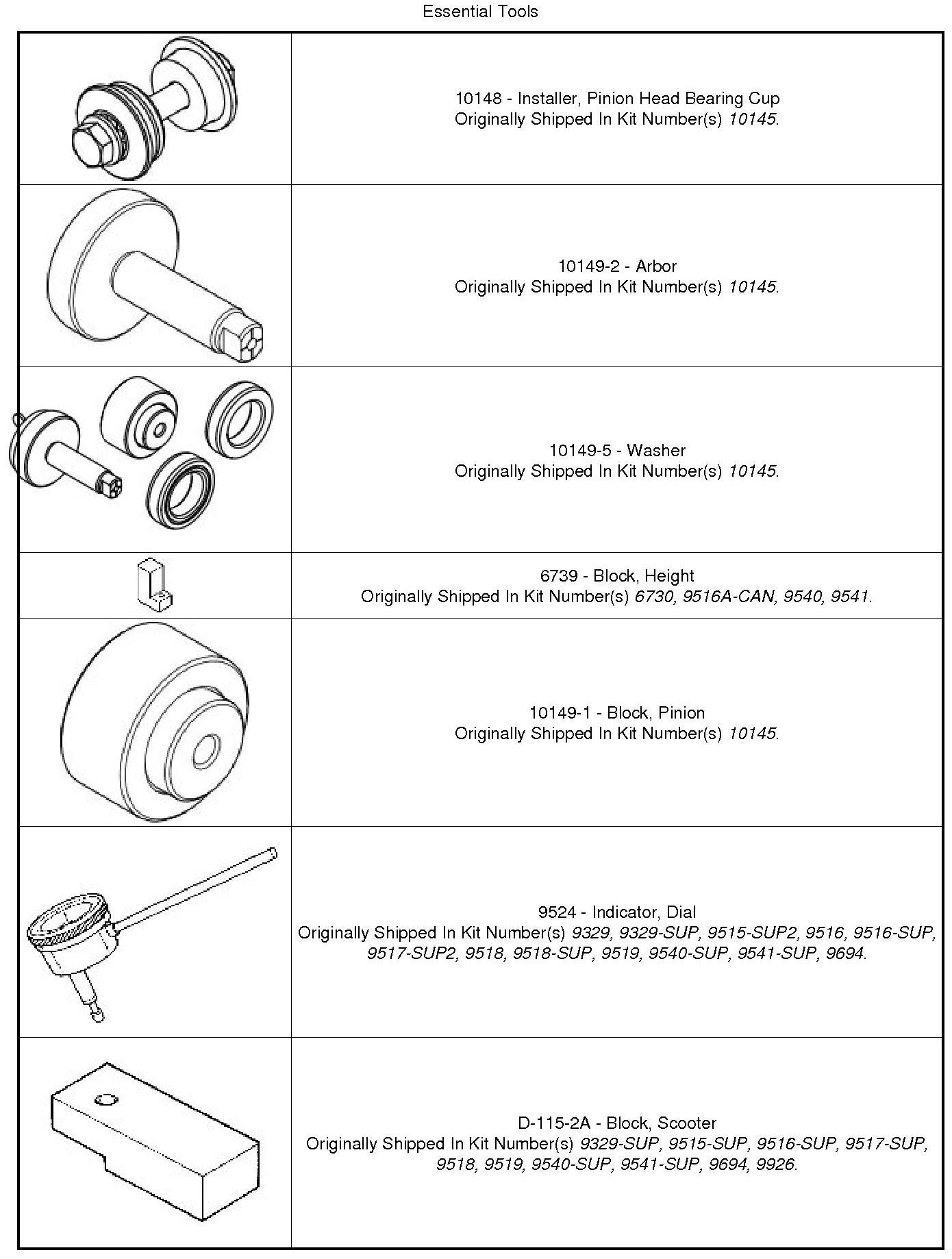

Special Tools:






NOTE: Pinion depth measurement is taken with the pinion head and tail bearing cups pressed into the axle housing without the shim.






NOTE: Do not attempt to install the inner and outer pinion bearing cups at the same time.

1. If necessary, install the pinion head bearing cup into housing with Pinion Bearing Cup Installer (1).
2. If necessary, press pinion tail bearing cup into housing with Pinion Bearing Cup Installer (1).

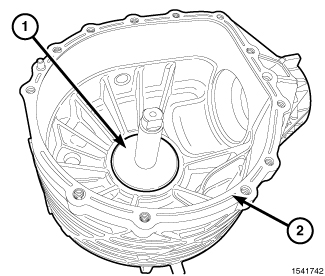

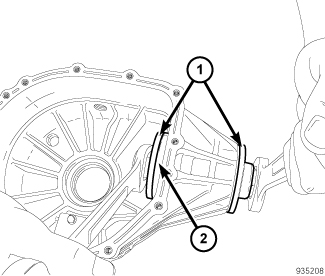

3. Install Arbor Bar (1) into the case side bearing bore, then secure Arbor in place with Plate and fastener.

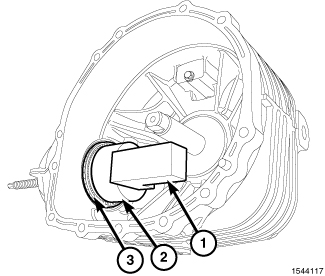

4. Install the pinion head bearing, tail bearing (3), L-block (1), and the Pinion Height Block (2).
5. Verify pinion depth measurement tools are set up as shown.

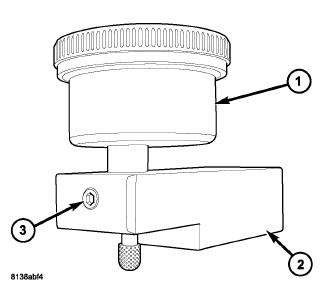

6. Install Dial Indicator (1) to Scooter Block (2). Secure with set-screw (3).

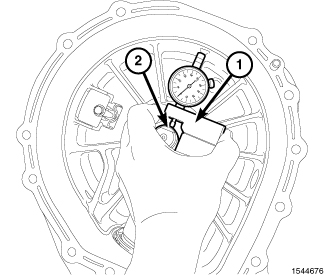

7. Zero Dial Indicator (1) on L-block (2).

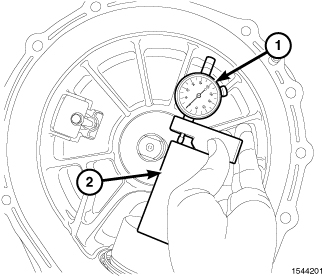

8. Slide indicator probe (1) off of height block and onto Arbor Bar (2). As indicator contacts Arbor Bar (2), indicator needle will rotate clockwise. Continue moving indicator probe to the crest of Arbor Bar and record the highest reading.
9. Rotate Arbor Bar (2) 90°.
10. Repeat steps 7 through 9 and record each measurement until the Arbor Bar has been rotated back to the original location.
11. Average the four measurements taken in steps 7 through 10.
12. Select a shim equal to the average of the measurements, plus 1.5 mm (0.059 in.).
