Automatic Transmission/Transaxle

SCHEMATICS AND DIAGRAMS

Figure 1 - HYDRAULIC FLOW IN PARK

Figure 2 - HYDRAULIC FLOW IN REVERSE - FAILSAFE

Figure 3 - HYDRAULIC FLOW IN REVERSE

Figure 4 - HYDRAULIC FLOW IN NEUTRAL - DEFAULT

Figure 5 - HYDRAULIC FLOW IN NEUTRAL

Figure 6 - HYDRAULIC FLOW IN NEUTRAL TO DRIVE TRANSITION

Figure 7 - HYDRAULIC FLOW IN DRIVE - FAILSAFE

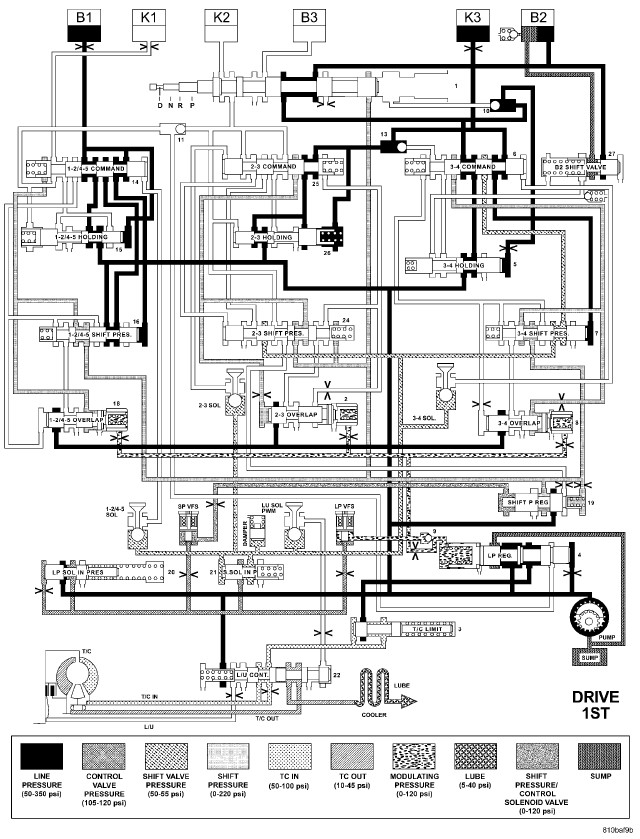

Figure 8 - HYDRAULIC FLOW IN DRIVE - FIRST GEAR

Figure 9 - HYDRAULIC FLOW IN DRIVE - FIRST TO SECOND GEAR TRANSITION

Figure 10 - HYDRAULIC FLOW IN DRIVE - SECOND GEAR

Figure 11 - HYDRAULIC FLOW IN DRIVE - SECOND TO THIRD GEAR TRANSITION

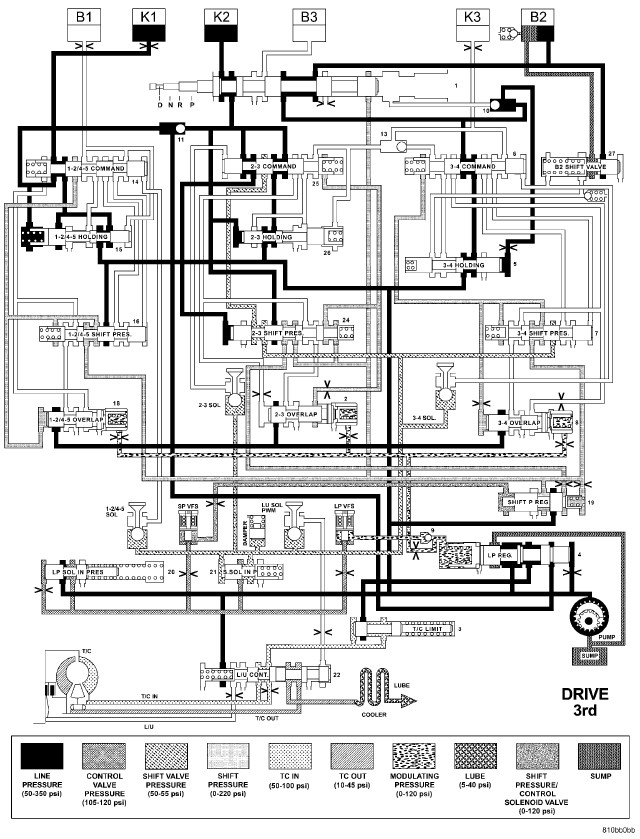

Figure 12 - HYDRAULIC FLOW IN DRIVE - THIRD GEAR

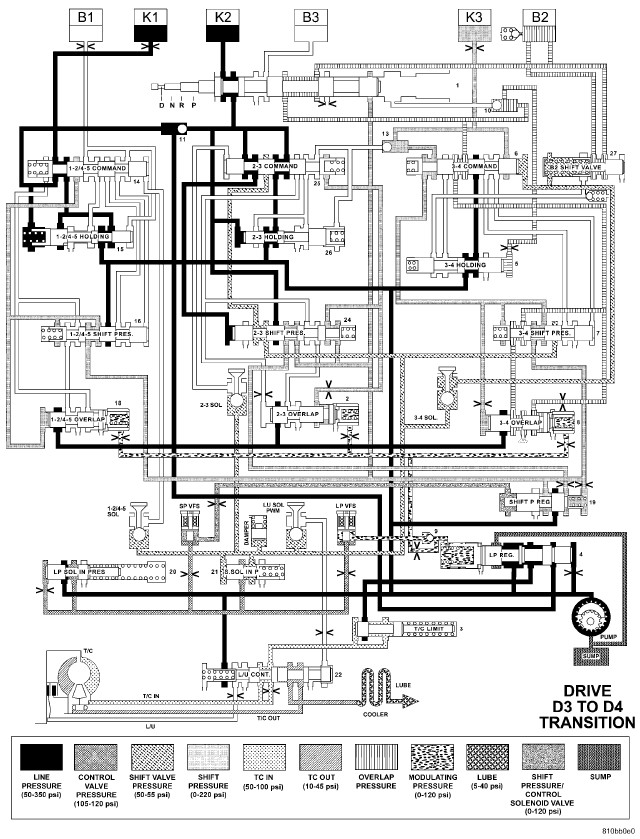

Figure 13 - HYDRAULIC FLOW IN DRIVE - THIRD TO FOURTH GEAR TRANSITION

Figure 14 - HYDRAULIC FLOW IN DRIVE - FOURTH GEAR

Figure 15 - HYDRAULIC FLOW IN DRIVE - FOURTH TO FIFTH GEAR TRANSITION

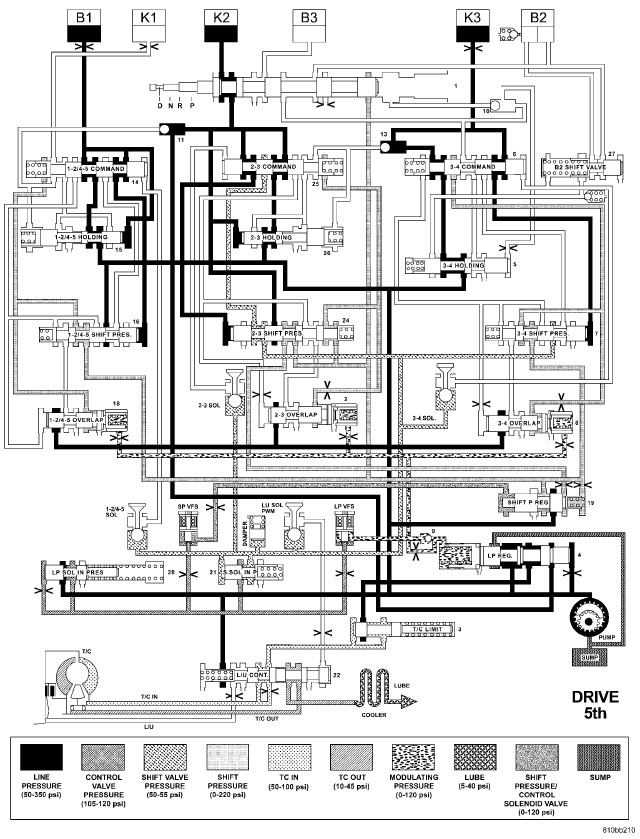

Figure 16 - HYDRAULIC FLOW IN DRIVE - FIFTH GEAR

Figure 17 - HYDRAULIC FLOW IN DRIVE - FIFTH GEAR - EMCC

Figure 18 - HYDRAULIC FLOW IN DRIVE - FIFTH TO FOURTH GEAR TRANSITION

Figure 19 - HYDRAULIC FLOW IN DRIVE - FOURTH TO THIRD GEAR TRANSITION

Figure 20 - HYDRAULIC FLOW IN DRIVE - THIRD TO SECOND GEAR TRANSITION

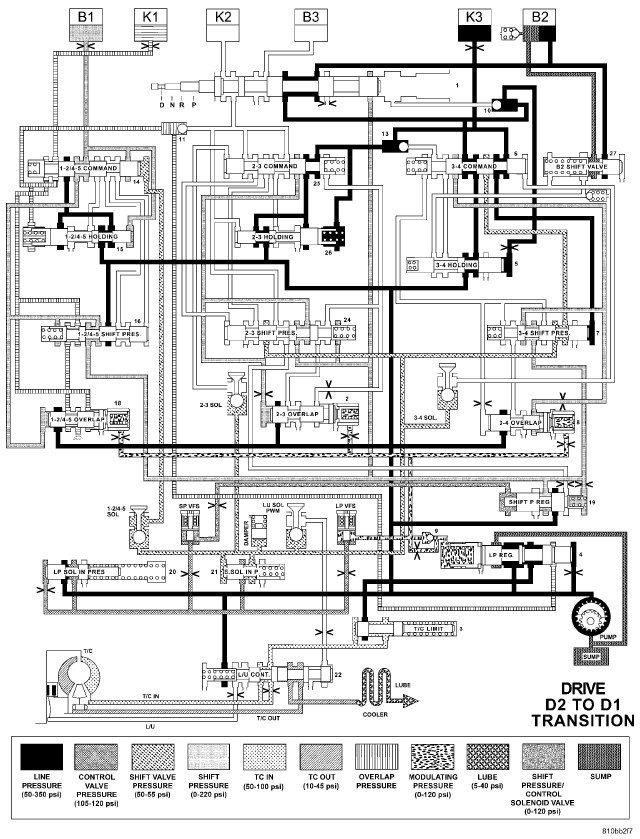

Figure 21 - HYDRAULIC FLOW IN DRIVE - SECOND TO FIRST GEAR TRANSITION
