B0070-13
B0070-13-DRIVER SEATBELT BUCKLE PRETENSIONER - CIRCUIT OPEN
Special Tools:

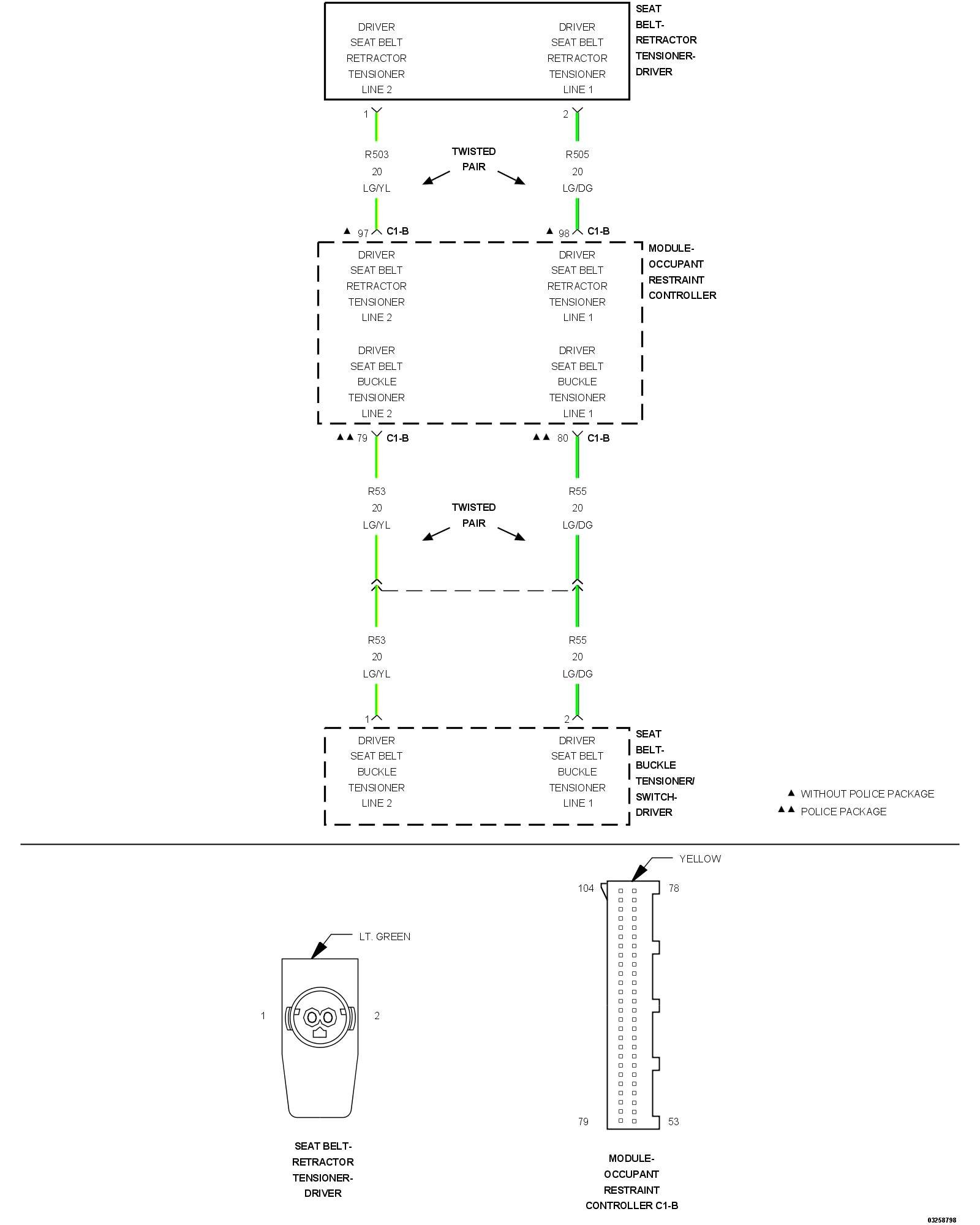

For a complete wiring diagram, refer to the Wiring Information.
Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the squibs to verify the integrity of the squib and wiring. These circuits are maintained in a "floating" configuration at the module (connected to neither power nor ground) as protection against inadvertent deployment. Use of the (8443A) in the tests below substitutes a suspect squib with a known good component.
- When Monitored:
The ORC sends out a 40 mA diagnostic current on each squib voltage supply circuit at power up and every 500 ms thereafter while the ignition is in on. The module then monitors the data return wire to determine the state of the circuit.
- Set Condition:
This DTC sets when the ORC detects an open on the squib circuit for more than 2.5 seconds. This DTC transitions from active to stored when the module sees a recovery from an open condition for greater than 2.5 seconds.
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.
1.
NOTE: The use of a approved special tool or Digital Multimeter such as a Fluke Meter that will not apply more than 20 milliamperes to a circuit are the only measurement tools to be used.
NOTE: Probing of the circuit cavities at the ORC Module C1-A, C1-B, or C2-A body harness connectors is only to be done with a approved test lead from the (10159), test lead 10159-6. Or a comparable test lead to prevent vehicle wiring harness connector damage during diagnostic procedures.
DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure the battery is fully charged.
1. Turn the ignition on.
2. With the scan tool, read all active ORC DTCs.
Is the DTC active or stored?
ORC - ACTIVE DTC
- Go To 2
ORC - STORED DTC
- Go To 5
2. CHECK FOR OPEN DRIVER SEAT BELT BUCKLE TENSIONER
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Seat Belt Buckle Tensioner harness connector.
WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.
NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the (8443A) and the (8443-8) to the Driver Seat Belt Buckle Tensioner harness connector.If the vehicle is equipped with the standard key ignition, follow this ignition on warning.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
If the vehicle is equipped with the keyless ignition, follow this ignition on warning.
WARNING: Disconnect the 12-volt battery wait two minutes before proceeding, remove the ORC fuses, connect the 12-volt battery, wait two minutes before proceeding. Cycle the ignition to the On position, then reconnect the ORC fuses. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
Does the scan tool display: B0070-13-DRIVER SEATBELT BUCKLE PRETENSIONER - CIRCUIT OPEN?
Yes
- Go To 3
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Driver Seat Belt Buckle Tensioner. Seat Belt Buckle - Removal.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
3. CHECK (R55) DRIVER SEAT BELT BUCKLE TENSIONER DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT FOR AN OPEN
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the (8443A) and the (8443-8) from the Driver Seat Belt Buckle Tensioner harness connector.
2. Disconnect the ORC harness connectors.
NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the test leads to the DVOM.
4. Measure the resistance of the (R55) Driver Seat Belt Buckle Tensioner Line 1 circuit between the Driver Seat Belt Buckle Tensioner connector terminal 2 and the ORC Module body harness connector terminal C1-B 80.
Is the resistance below 1.0 Ohm?
Yes
- Go To 4
No
- Repair or replace the (R55) Driver Seat Belt Buckle Tensioner Line 1 circuit. Then Go To 4
4. CHECK (R53) DRIVER SEAT BELT BUCKLE TENSIONER LINE 2 CIRCUIT FOR AN OPEN
1. Measure the resistance of the (R53) Driver Seat Belt Buckle Tensioner Line 2 circuit between the Driver Seat Belt Buckle Tensioner harness connector terminal 1 and the ORC Module body harness connector terminal C1-B 79.
Is the resistance below 1.0 Ohm?
Yes
- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the ORC. Occupant Restraint Controller - Removal.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- Repair or replace the (R53) Driver Seat Belt Buckle Tensioner Line 2 circuit for an open.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
5. STORED ORC DTC
1. With the scan tool, record and erase all DTCs from all Airbag System Modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.If the vehicle is equipped with the standard key ignition, follow this ignition on warning.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
If the vehicle is equipped with the keyless ignition, follow this ignition on warning.
WARNING: Disconnect the 12-volt battery wait two minutes before proceeding, remove the ORC fuses, connect the 12-volt battery, wait two minutes before proceeding. Cycle the ignition to the On position, then reconnect the ORC fuses. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
7. With the scan tool monitor active codes as you work through the following steps.
WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
10. If only stored codes return continue the test until the problem area has been isolated.
11. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTCs present?
Yes
- Select the appropriate diagnostic procedure. Testing and Inspection.
No
- No problem found at this time. Erase all codes before returning vehicle to customer.
