Blind Spot Module - Installation

INSTALLATION

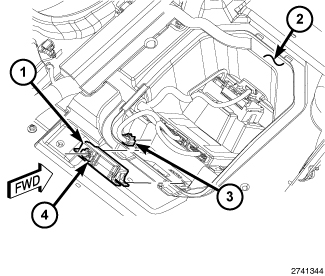

1. Position the blind spot module (1) in the mounting bracket.
2. Slide the module into place until the locking tabs are secure.
3. Connect the body wire harness connector (3) to the module connector receptacle (4).
4. Install the cover panel onto the electronic module tub.
5. Connect the negative battery cable. Negative Cable, for battery location and cable connection procedure.
