Frame Mount

REMOVAL

Special Tools:










1. Remove the rear suspension crossmember. Crossmember - Removal

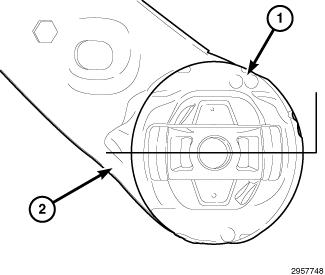

2. As an installation reference, carefully mark location of isolator (1) requiring removal on crossmember (2) (around isolator can flange) using a marker or crayon. Do not use a scratch awl to mark location.










NOTE: Prior to using special tools, lubricate Remover/Installer, Bushing Screw Assembly (1) threads to provide ease of use and promote tool longevity.

NOTE: When installing thrust bearing, be sure to place hardened side toward bolt head.

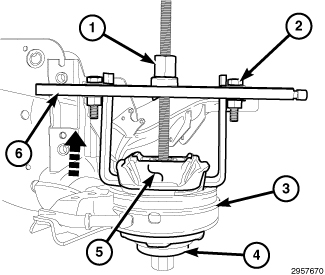

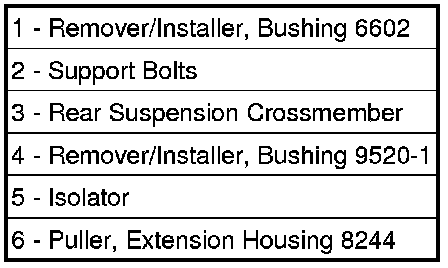

3. Assemble tools over isolator as shown.
4. Install two bolts (2) as shown to stabilize Puller, Extension Housing (6) legs during the removal procedure.
5. While holding screw assembly from rotating, using hand tools, tighten Remover/Installer, Bushing nut (1) until Remover/Installer, Bushing (4) comes in contact with isolator (5) and Puller, Extension Housing (6) sets squarely against crossmember (3).
6. Continue to tighten Remover/Installer, Bushing nut (1), pressing isolator (5) out of crossmember (3).
7. Remove tools with isolator.
