Front Seat - Removal

REMOVAL





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Adjust the front seat to its most forward position for easiest access to the front seat belt lower anchor cover (2) and the B-pillar trim.

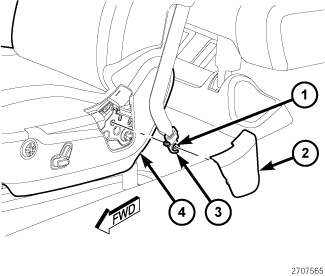

3. Grasp the upper edge of the lower anchor cover and pull it carefully upward and outward to unsnap it from the front seat cushion outboard side shield (4).
4. Remove the screw (1) that secures the seat belt lower anchor (3) to the outboard side of the front seat cushion frame.





5. Move the seat back to gain access to the bolts (2).

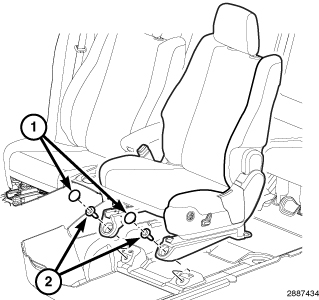

6. Remove trim covers (1) and remove the two front bolts (2).





7. Open the trim covers (2) and remove the two rear bolts (1).
8. Disconnect and isolate battery negative cable.
9. Disconnect the electrical connectors, if equipped, and remove the seat from the vehicle.
