Air Cleaner Body - Installation

INSTALLATION

AIR CLEANER HOUSING

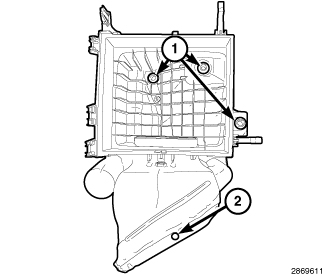

1. Position the air cleaner housing and secure the air cleaner housing rubber grommets (1) to the ball studs.
2. Install the air cleaner housing duct push pin retainer (2).





3. Install the air filter element into the housing assembly.
4. Install the air cleaner cover onto the housing assembly locating tabs.

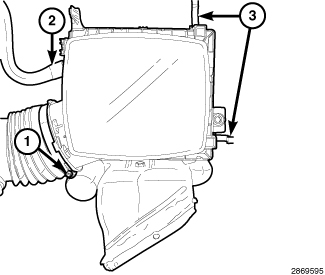

5. Latch the 2 spring clips (3) and lock the air cleaner cover to the housing assembly.
6. Connect the make up air hose (2) to the air cleaner cover.
7. Connect the clean air hose to the air cleaner cover and tighten clamp (1) to 5 Nm (44 in. lbs.).

RESONATOR ASSEMBLY





1. Connect the resonator hose at the throttle body and tighten clamp (4) to 5 Nm (44 in. lbs.).
2. Install the resonator retaining bolt (3) and tighten to 5 Nm (44 in. lbs.).
3. Connect the clean air hose at the air cleaner housing and tighten clamp (2) to 5 Nm (44 in. lbs.).
4. Connect the electrical connector at the Intake Air Temperature (IAT) sensor (1).





5. Position the engine cover (2) and secure the retaining grommets to the ball studs.
6. Install the oil fill cap (1).
