Liftgate Lamp

LAMP

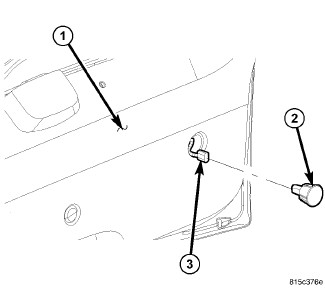

1. Align the liftgate lamp (2) to the mounting hole in the face of the liftgate trim panel (1).
2. Using hand pressure, press the lamp firmly and evenly into the mounting hole until the lamp latch features snap into place.
3. Reconnect the wire harness connector (3) to the back of the lamp housing.
4. Reinstall the trim onto the liftgate inner panel. Liftgate Trim Panel - Installation.
5. Reconnect the battery negative cable.
