Front Stabilizer Bar - Installation

INSTALLATION





1. Position the stabilizer bar (8) to the vehicle.
2. Install the stabilizer bushing clamps and tighten the two bolts on each side to 122 Nm (90 ft. lbs.).

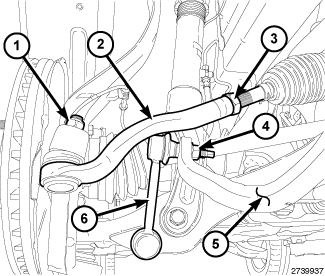

3. Position the stabilizer link (6) to the stabilizer bar (5), install the nut (4) and tighten to 122 Nm (90 ft. lbs.).
4. Install the front skid plate Skid Plate - Installation.
5. Remove the supports and lower the vehicle.
