Transmission Solenoid And TRS Assembly - Removal

REMOVAL

NOTE: If the Transmission Solenoid/TRS Assembly is being replaced, the Quick Learn Procedure must be performed.

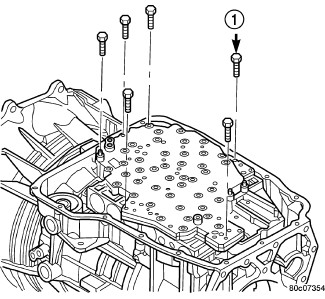

1. Remove the valve body from the transmission.

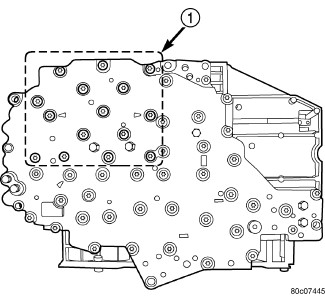

2. Remove the bolts (1) holding the transmission solenoid/TRS assembly onto the valve body.
3. Separate the transmission solenoid/TRS assembly from the valve body.
