Intrusion Module - Installation

INSTALLATION

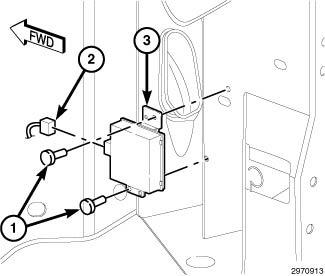

1. Install the intrusion module (3) and push pin retainers (1).
2. Connect the intrusion module electrical connector (2).
3. Install the glove box Instrument Panel Glove Box - Installation.

NOTE: LHD model and RHD model similar.

4. Position the silencer to the passenger side of the instrument panel and install the push-pin retainers.
5. Connect the negative battery cable.
