Oil Pressure Sensor - Removal
REMOVAL 1.
Release fuel system pressure
Service and Repair.
2.
Disconnect and isolate the negative battery cable.
3.

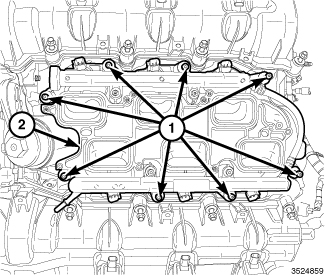

Remove the air inlet hose, upper intake manifold and lower intake manifold with the fuel injectors and fuel rail (2)
Intake Manifold - Removal .
4.
Disconnect the
oil pressure sensor electrical connector (4).
5.
Remove the
oil pressure sensor (2) from the oil filter housing (3).
