Air Cleaner Body - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover (1).

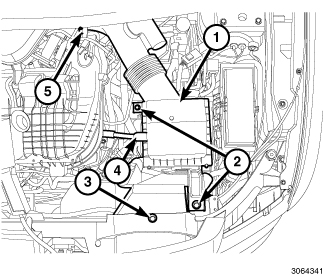

3. Disconnect the fresh air makeup hose (4) from the air cleaner body (1).
4. Remove the push pin (3).
5. Remove two bolts (2) from the air cleaner body (1).
6. Loosen the clamp (5) at the resonator and remove the air cleaner body (1).
