Rear Driveline Module Operation






REAR DRIVELINE MODULE OPERATION

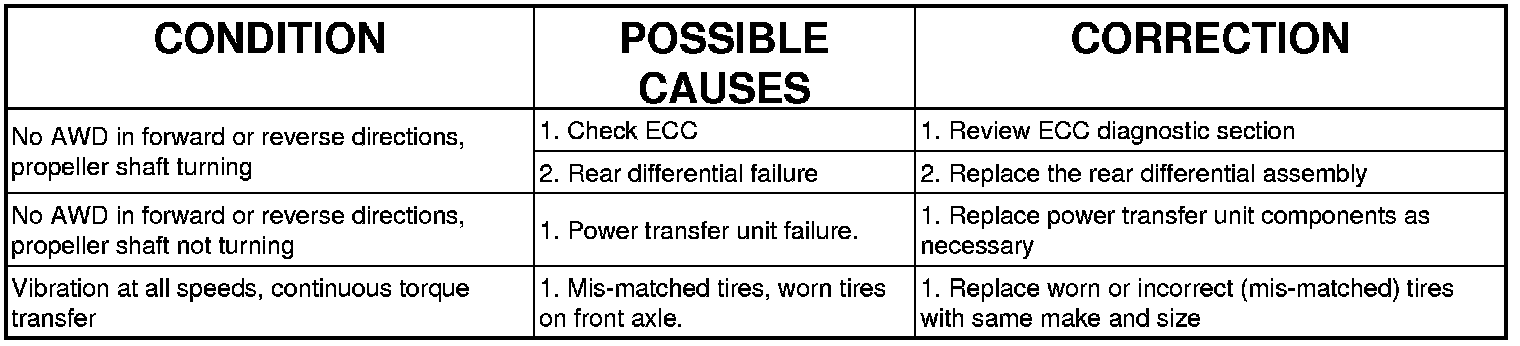

Driveline module operation requires relatively straight-forward diagnosis. Refer to the following chart:
