Supply Hose

2.0L/2.4L ENGINE

NOTE: Before proceeding, Service Precautions .

1. Siphon as much fluid as possible from the power steering fluid reservoir.

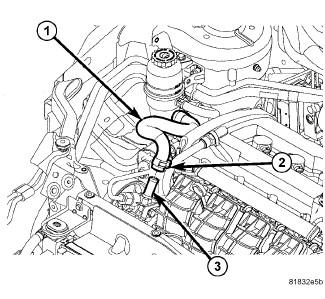

2. Remove the clamp (2) securing the supply hose to the power steering pump supply fitting (3), then remove the hose from the supply fitting.

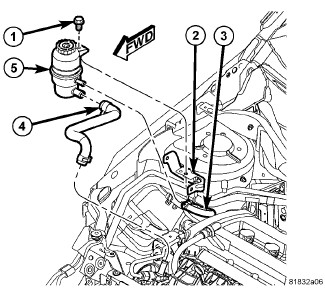

3. Remove the hose clamp securing the supply hose (4) to the power steering fluid reservoir (5). Slide the hose off the end of the reservoir fitting and remove from vehicle.
