Lower

INSTALLATION

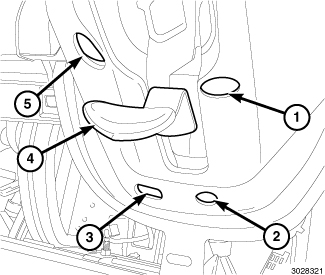

1. Push the tilt lever (4) downward (released position).
2. Install the lower shroud over the tilt lever and onto the column.
3. Install the upper shroud onto the lower shroud, clipping the shrouds to one another.
4. Install the three screws (1, 2, 5) attaching the lower shroud to the steering column.
5. Snap the gap hider clips (3) into the lower shroud.
6. Position the column tilt at the full-upward position.
7. Push the tilt lever (4) upward, locking the column in place.
