Power Seat Memory Switch - Installation

INSTALLATION

NOTE: Take the proper precautions to protect the face of the seat switch bezel from cosmetic damage while performing this procedure.

NOTE: Driver side shown. Passenger side similar.

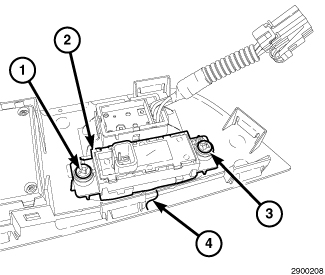

1. Position the memory seat switch (2) to the seat switch bezel (4).
2. Install the two screws (1 and 3) that secure the memory seat switch to the seat switch bezel. Tighten the screws securely.





3. Position the seat switch bezel (2) to the seat and connect the electrical connectors (1 and 3).

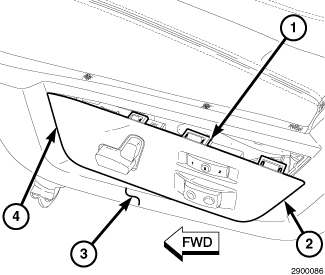

4. Engage the retaining tab (4) at the front of the seat switch bezel (2) to the seat cushion side trim panel (3).
5. Carefully engage the remaining seven retaining tabs (1) that secure the seat switch bezel to the seat cushion side trim panel. Start at the front of the switch bezel and work rearward. Make sure all eight retaining tabs are fully engaged.





6. Connect the lumbar control switch electrical connector (1) to the seat wire harness (2).
7. Reconnect the negative battery cable.
8. Verify proper power seat operation.
