Brake Backing Plate - Removal

REMOVAL

1. Raise and support the vehicle, Maintenance.
2. Remove wheel and tire assembly.
3. Remove the disc brake caliper Disc Brake Caliper - Removal.
4. Remove the caliper adapter Disc Brake Caliper Adapter - Removal.
5. Remove the rotor Brake Rotor - Removal.
6. Remove the axle shaft.
7. Remove the park brake shoes Removal.
8. Remove the parking brake cable from the brake lever.

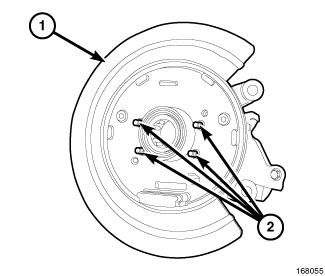

9. Remove the bolts (2) attaching the support plate (1) to the axle and remove the support plate.
