Water Pump - Installation

5.7L ENGINE

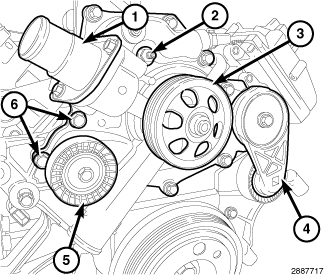

1. Clean mating surfaces and install water pump (3). Tighten mounting bolts to 24 Nm (18 ft. lbs.).
2. Install upper metal heater tube.
3. Install belt tensioner assembly (4) Accessory Drive Belt Tensioner - Installation.
4. Install idler pulley (5).
5. Install the lower radiator hose.
6. Install serpentine belt Serpentine Accessory Drive Belt - Installation.
7. Install the resonator mounting bracket.
8. Install cooling fan assembly . Electric Radiator Fan - Installation
9. Install the upper radiator hose to the thermostat housing (1).
10. Install the air intake assembly Air Cleaner Body - Installation.
11. Connect negative battery cable.
12. Evacuate air and refill cooling system Service and Repair.
13. Check cooling system for leaks Component Tests and General Diagnostics.
