Infrared Temperature Sensor - Installation

INSTALLATION

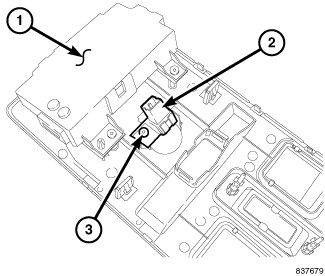

1. Position the infrared sensor (2) onto the overhead console (1).
2. Install the screw (3) that secures the infrared sensor to the overhead console. Tighten the screw to 1.1 Nm (10 in. lbs.).
3. Install the overhead console Front Overhead Console - Installation.
4. Reconnect the negative battery cable.
