Lower Coupling

INSTALLATION

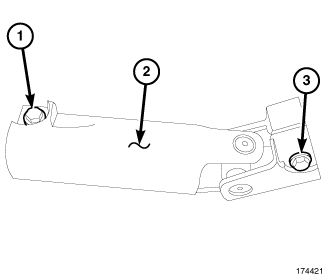

1. Install the coupling (2) to the steering rack and pinion, and intermediate shaft using the marks made in the removal process.

NOTE: New pinch bolts must be used for reinstallation.

2. Install the lower coupling lower pinch bolt (1) and tighten to 57 Nm (42 ft. lbs.).





3. Install the lower coupling upper pinch bolt (1) and tighten to 38 Nm (28 ft. lbs.).
4. Install the left front tire and wheel assembly [1][2]Specifications.
5. Remove the support and lower the vehicle.
6. Reconnect the negative battery cable.
7. Unlock the steering wheel.
