Stabilizer Bar - Installation

STANDARD STABILIZER BAR










1. Position the stabilizer bar on the frame rail and install the clamps and bolts. Ensure the bar is centered with equal spacing on both sides.
2. Tighten the clamp bolts to specifications .

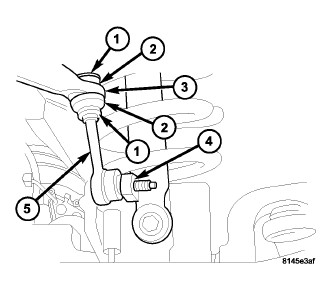

3. Install links (5), retainers (1), grommets (2) and nuts to the stabilizer bar (3). Hold the link shaft with a wrench and tighten the nuts to specifications .
4. Remove the supports and lower the vehicle.
