Removal

REMOVAL

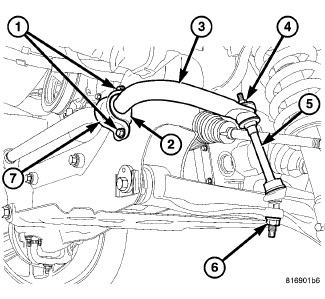

NOTE: 4X4 shown, 4x2 similar.






NOTE: It may be necessary to remove the other stabilizer link upper nut (4) in order to remove the link (5) being worked on from the vehicle.

1. Raise and support the vehicle.
2. Remove the lower nut (6).
3. Remove the upper nut, retainers and grommets (4).
4. Remove the stabilizer link (5) from the vehicle.
