Outside Rearview Mirror Glass - Installation

INSTALLATION





1. Connect the electrical connectors (2), if equipped.
2. Position the mirror glass assembly into the housing and seat the lower hinge type clips (1) fully.

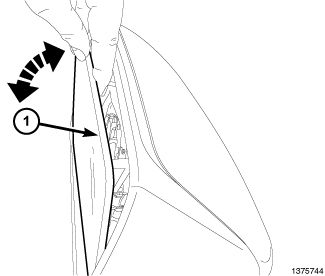

3. Push the top of the glass (1) back into the housing and seat the mounting clips fully.
