Front Seat - Removal

REMOVAL

Driver Side





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove the trim cover (1).

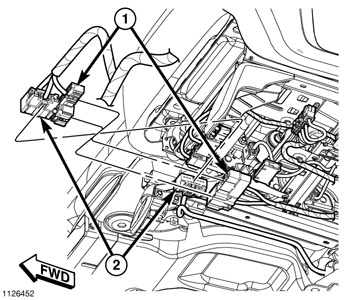

3. Disconnect the electrical connectors (1) and (2), if equipped.

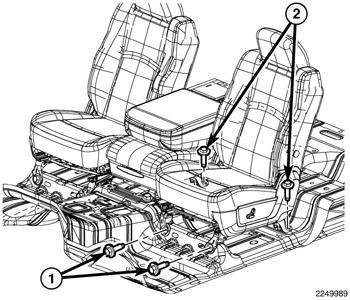

4. Remove the front mounting bolts (1) from the driver side seat.
5. Remove the rear bolts (2) and remove the diver seat.

Passenger Side





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions

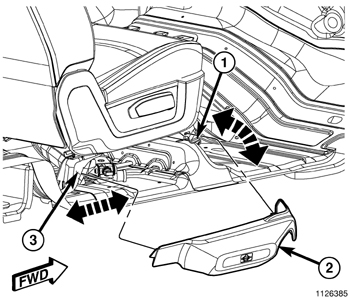

2. Carefully release the front clip and separate the jack cover (2) from the front of the riser (1).
3. Carefully pull the cover forward and release the rear hook from the rear of the riser (3).

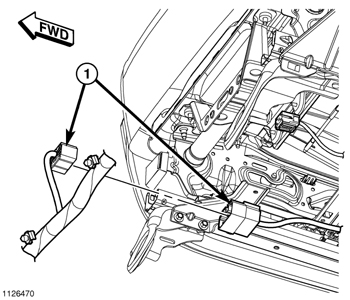

4. Disconnect the electrical connector (1), if equipped.

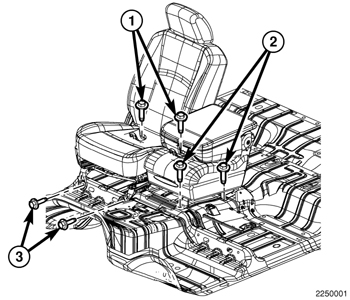

5. Remove the front passenger seat bolts (3).
6. Remove the center seat bolts (2), if equipped with the center seat.
7. Remove the rear bolts (1) and remove the passenger seat assembly.

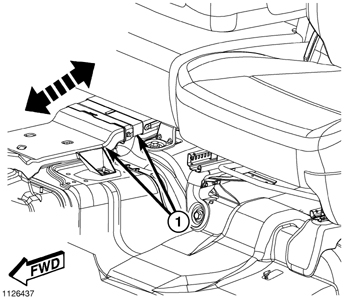

8. Disconnect the rear air duct (1) by sliding the telescoping duct section, attached to the seat, rearward.
