Valve Tappet(s) - Installation

INSTALLATION

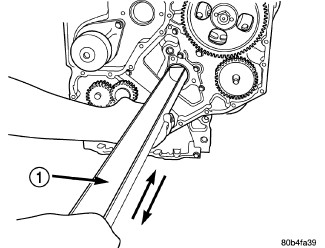

1. Insert the trough (1) the full length of the camshaft bore. Again, make sure the cap end goes in first and the open side faces up (towards tappets).

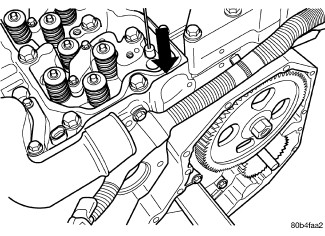

2. Lower the tappet installation tool through the push rod hole and into the trough.

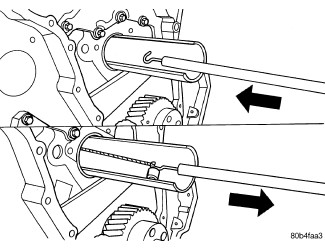

3. Retrieve the tappet installation tool using the hooked rod provided with the tool kit
.




4. Lubricate the tappet with clean engine oil or suitable equivalent and install the tappet to the installation tool.

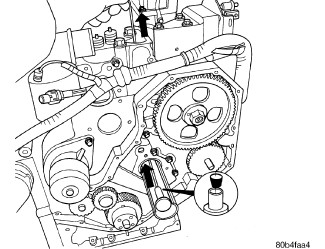

5. Pull the tappet up and into position. If difficulty is experienced getting the tappet to make the turn into the tappet bore, wiggle the trough while gently pulling up on the tappet.

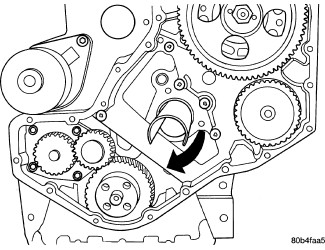

6. With the tappet in place, rotate the trough one half turn so the open side is down (toward crankshaft).
7. Remove the tappet installation tool from the tappet.
8. Re-install a dowel rod and secure the rod with a rubber band.





9. Rotate the trough one half turn and repeat the procedure for the remaining tappets.
10. Install the camshaft Camshaft - Installation
