Air Cleaner Body - Installation

INSTALLATION





1. Position the air cleaner body (1) rear pegs to battery tray and push down to lock in place.

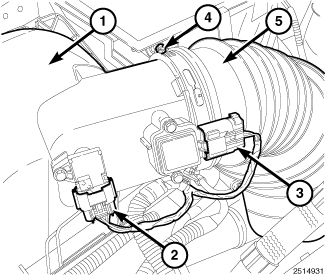

2. Install the intake air tube (5) to the air cleaner body (1). Tighten clamp (4) 4 Nm (35 in. lbs.).
3. Connect the TBAP (2) sensor.
4. Connect the Mass Air Flow (MAF) (3) sensor.

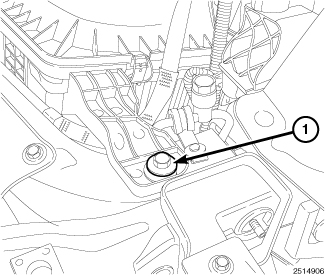

5. Install the housing bolt (1). Tighten bolt (1) 8 Nm (71 in. lbs).
6. Connect both negative battery cable.

Intake Air Tube

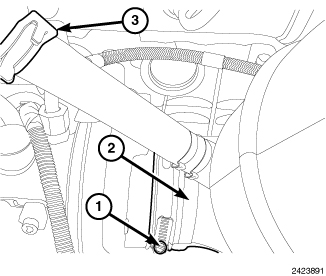

1. Install the outlet tube (2) to the turbocharger. Tighten the clamp (1) 4 Nm (35 in. lbs.).
2. Connect the breather hose (3).
