Removal

REMOVAL

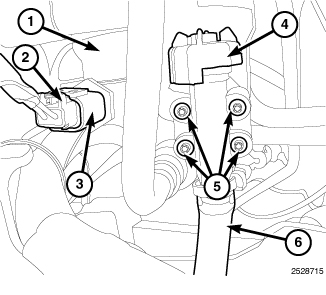

1. With engine not running, Route the fuel drain hose to an appropriate container and rotate drain valve (4) one quarter turn counter clockwise to open it. Also, loosen the fuel filter housing cover a 1/2 turn and allow the fuel drain from the fuel filter housing for two minutes. Rotate the drain valve (4) clockwise one quarter turn to close it.
2. Disconnect the Water In Fuel (WIF) sensor harness connector (2).
3. Remove the WIF sensor (3).
