Switch

SWITCH





1. Disconnect and isolate the battery negative cable.
2. Remove the storage bin from the vehicle. Pickup Box - Removal.

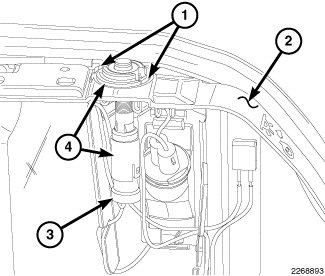

3. Disconnect the storage bin wire harness connector (3) from the ajar switch (4) connector receptacle.
4. From the top of the rear storage bin ledge (2), squeeze the two ajar switch latch tabs (1) together and pull the switch upward out of the mounting hole.
5. Remove the ajar switch from the storage bin.
