Intake Air Temperature Sensor - Installation

INSTALLATION

PICK UP MODELS

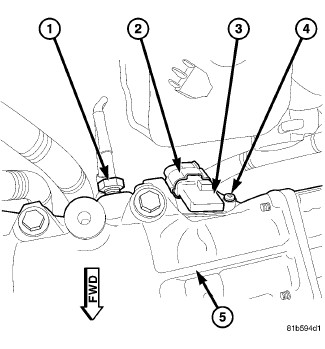

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) (3) sensor is installed into the intake air connection manifold, below, and to the rear of the EGR valve (5).

1. Check condition of sensor O-ring.
2. Clean sensor mounting area at intake manifold.
3. Lubricate sensor O-ring and sensor mounting hole in intake manifold with clean engine oil.
4. Position sensor (3) into intake manifold.
5. Install and tighten sensor mounting screw (4) to 1 Nm (9 in. lbs.) torque.
6. Connect electrical connector (2) to sensor.
