Installation

INSTALLATION






NOTE: Axle flange bolts must be replaced or cleaned existing bolts apply Mopar(TM) Lock N' Seal or Loctite(R) 242 on the threads.

1. Clean axle flange and hub.
2. Install new axle shaft gasket.
3. Slide axle shaft into the axle tube.

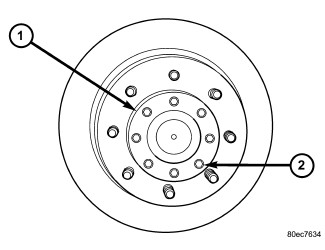

4. Install axle shaft flange (1) bolts (2) and tighten to 129 Nm (95 ft. lbs.).
