Tail Stop Turn Lamp Bracket - Installation

BRACKET - CAB AND CHASSIS

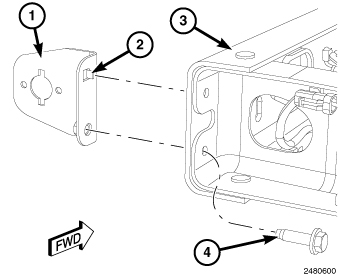

1. Position the tail lamp bracket (1) to the outer frame rail (3). Be certain to engage the anti-rotation tab (2) in the frame clearance hole (upper hole - left side, or lower hole - right side).
2. Install and tighten the screw (4) that secures the bracket to the frame. Tighten the screw to 55 Nm (41 ft. lbs.).
3. Reinstall the tail lamp onto the bracket.
4. Reconnect the battery negative cable.
