Electric Locking Differential Carrier - Disassembly

DISASSEMBLY

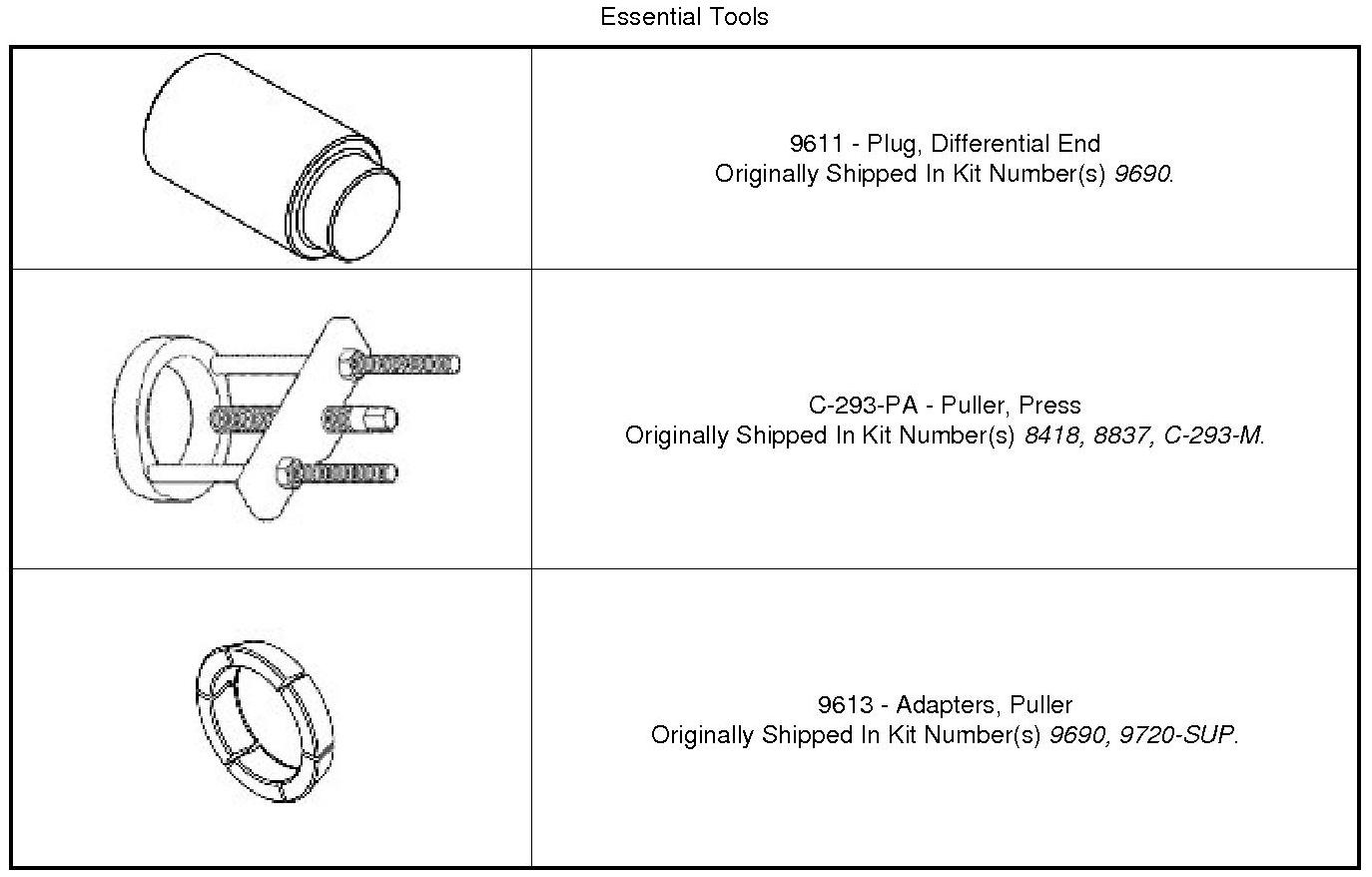

Special Tools:











NOTE: Internal differential components are serviced with the case.

1. Bend anti-rotation tabs outward.
2. Install Plug (1) into coil side of the case.

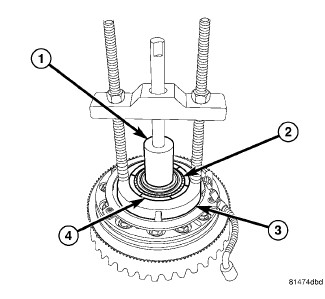

3. Remove differential case bearing (2) with Puller (3) and Adapters (4).

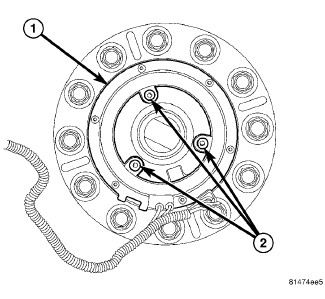

4. Remove coil (1) mounting bolts (2).
5. Remove coil (1) with harness.
