Front Bumper - Installation

INSTALLATION

1500 Light Duty

Sport Bumper





1. Position the bumper (3) onto the frame tip brackets (1) and install the nuts (2).
2. Check and adjust the bumper alignment as necessary.
3. Tighten the nuts (2) to 95 Nm (70 ft. lbs.).

Non Sport Bumper




Figure 2 - Non Sport Bumper
1. Position the bumper (3) onto the frame tip brackets (1) and install the nuts (2).
2. Check and adjust the bumper alignment as necessary.
3. Tighten the nuts (2) to 95 Nm (70 ft. lbs.).

2500 - 5500 Heavy Duty





1. Install the bumper brackets (2) and install the bolts (3) and nuts (1). Do not tighten the nuts at this time.





2. If equipped, install the tow hooks (3) and install the bolts (2) and nuts (1).
3. Tighten the nuts to 275 Nm (203 ft. lbs.).





4. Position the bumper onto the frame tip brackets and install the eight nuts (2).
5. Connect the electrical connectors (1), if equipped.

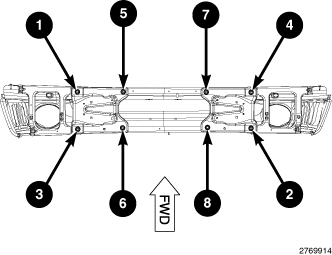

6. Tighten the eight bumper nuts using the sequence shown, to 95 Nm (70 ft. lbs.).





7. Check and adjust the bumper alignment as necessary.
8. Tighten the nuts (1) to 95 Nm (70 ft. lbs.).
9. Install the charge air cooler, if necessary.
10. Install the grille. Grille - Installation
