Cab Lamp - Installation

LAMP

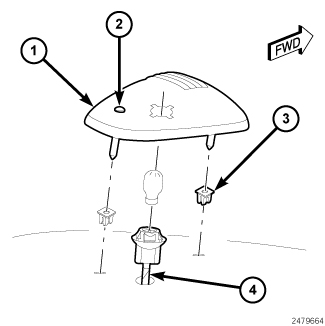

1. Install two new plastic nuts (3) into the holes in the roof panel. Always use new plastic nuts.
2. Position the molded gasket (1) to the underside of the cab clearance lamp.
3. Align the socket and bulb (4) with the keyed opening on the underside of the cab clearance lamp lens/housing.
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Position the cab clearance lamp to the outer roof panel. Be certain that the lamp is oriented with the bulb facing forward in the vehicle and the molded lamp gasket is properly positioned.
7. Install and tighten the two screws (2) that secure the lamp lens/housing to the roof panel. Tighten the screws securely.
8. Reconnect the battery negative cable.
