Front Bumper - Removal

REMOVAL

1500 Light Duty

Sport Bumper





1. Remove the front fascia. Front Bumper Fascia - Removal
2. Disconnect the electrical connectors.
3. Support the bumper with a suitable lifting device.
4. Remove the nuts (2) and remove the bumper (3).

Non Sport Bumper




Figure 2 - Non Sport Bumper
1. Remove the front fascia. Front Bumper Fascia - Removal
2. Disconnect the electrical connectors.
3. Support the bumper with a suitable lifting device.
4. Remove the nuts (2) and remove the bumper (3).

2500 - 5500 Heavy Duty





1. Remove the grille. Grille - Removal
2. Disconnect the electrical connectors (1), if equipped.
3. Remove the eight nuts (2) and remove the bumper.

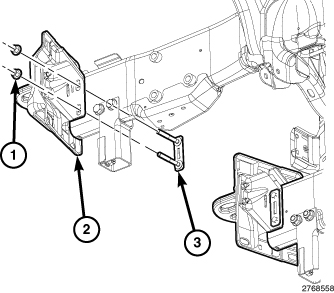

4. Remove the nuts (1) and bolts (2) and remove the tow hooks (3), if equipped.





5. Position aside the charge air cooler, if necessary.
6. Remove the nuts and bolts.
7. Remove the bumper brackets.
