Front Fender - Installation

INSTALLATION

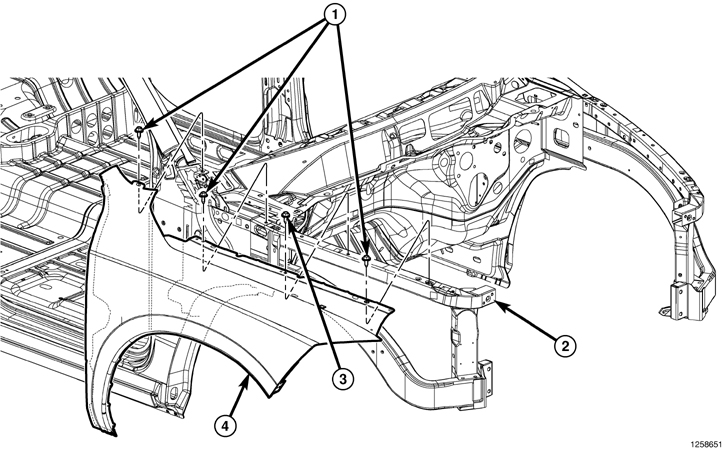

1. Position the fender (4) onto the hydroform fender supports (2).
2. Loosely install the bolts (1) and (3) for the right side.

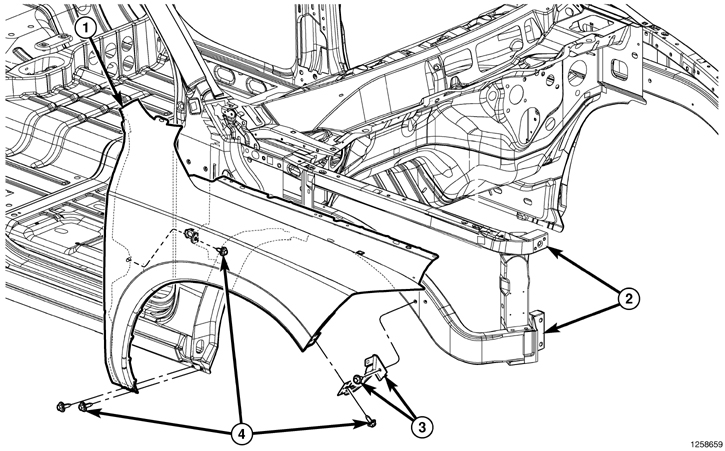

3. Loosely install the support bolts (4).
4. Check and adjust the fender gap and flush.
5. Tighten all the bolts to 9 Nm (80 in. lbs.).

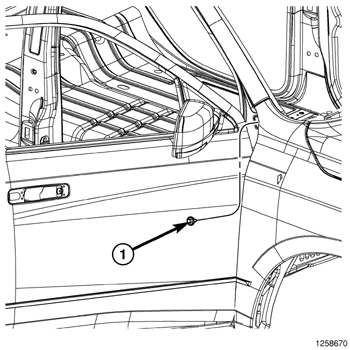

6. Install the bolt (1) and tighten to 9 Nm (80 in. lbs.).
7. Install the battery tray, if required .
8. Install the wheelhouse splash shield .
9. Install the front wheel opening molding.
10. Install the front fascia.
11. Install the headlamp unit.

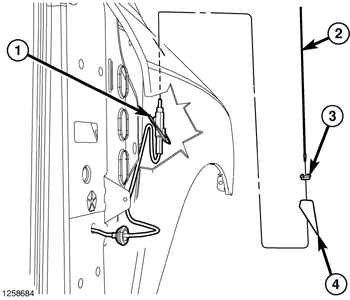

12. Install the antenna, if necessary.
