Lock Cylinder - Installation

INSTALLATION

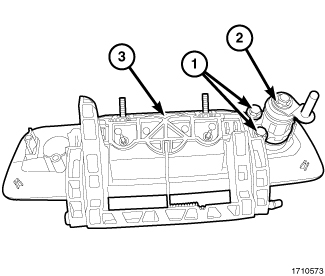

1. Install the lock cylinder (2) and install the screws (1).
2. Install the latch release handle (3). Latch Release Handle - Installation

Lock Cylinder Coding Instructions

1. If present, remove the protective label off of the new lock cylinder.
2. Insert the key that is intended for everyday use, fully into the cylinder.
3. Slowly rotate the key clockwise, while maintaining full key insertion, to 180 degrees or slightly more (6 or 7 o'clock position).

NOTE: The lock will code at 180 degrees.

4. Then rotate the key counter-clockwise to 90 degrees or 3 o'clock.
5. You will hear the lock activate, then rotate the key to vertical key-out position and remove the key.
