Service Port Valve Core - Removal

REMOVAL

WARNING: Refer to the applicable warnings and cautions for this system before performing the following operation Warning and Caution . Failure to follow these instructions may result in serious or fatal injury.

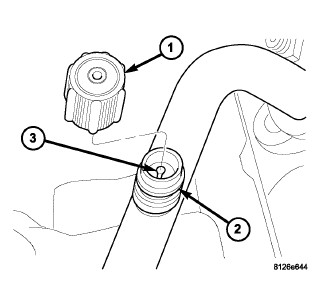

NOTE: Typical A/C service port shown.

1. Remove the protective cap (1) from the service port (2).
2. Recover the refrigerant from the refrigerant system Refrigerant System Recovery.
3. Using a Schrader-type valve core tool, remove the valve core (3) from the service port.
4. Install a plug in, or tape over the opened service port(s).
