Underhood Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.

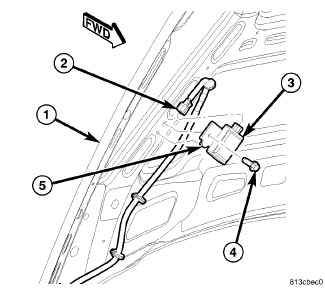

2. From the underside of the hood, remove the push-in retainers that secure the hood silencer pad to the inner hood (1) reinforcement as necessary to access the underhood lamp connection to the underhood lamp jumper wire harness (2).
3. Disconnect the underhood jumper wire harness connector from the underhood lamp (3) connector receptacle.
4. Remove the bulb from the underhood lamp. Underhood Lamp Bulb - Removal
5. Remove the blind rivet (4) that secures the underhood lamp mounting bracket to the inner hood reinforcement (1).
6. Remove the underhood lamp and bracket from the inner hood reinforcement as a unit.
