Rear Extension Housing - Disassembly

DISASSEMBLY

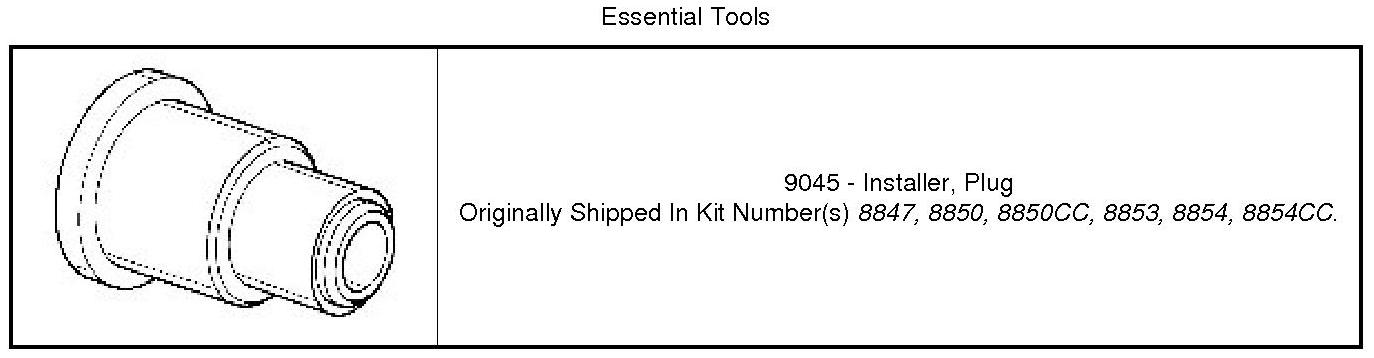

Special Tools:

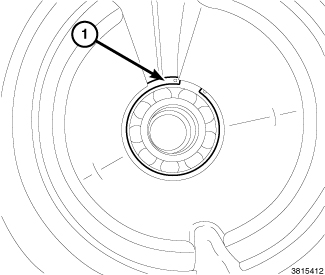

1. Remove the bearing snap-ring (1) from the extension housing.

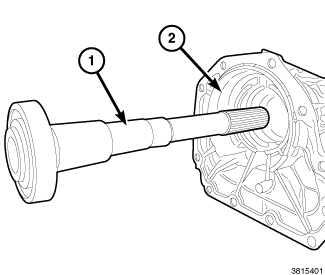

2. Remove the shaft (1) from the extension housing (2).

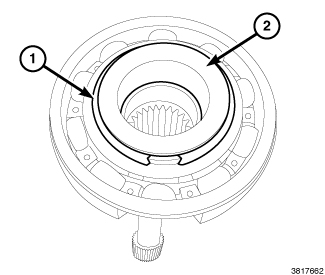

3. Remove snap ring (1) from shaft (2).

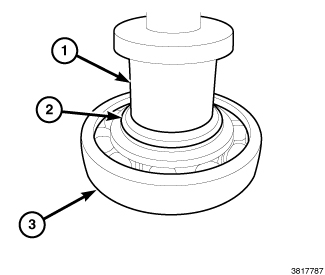

4. Using (9045) (1) and press, remove bearing (3) from shaft (2).

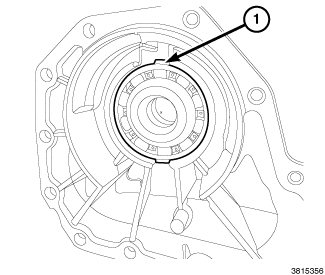

5. Remove the center bearing snap ring (1) and spacer (if equipped).





6. Remove the center bearing (1).

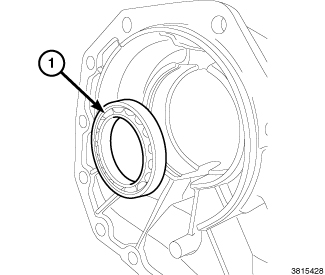

7. Using a seal removal tool, remove rear extension housing output shaft seal.
