Low/Reverse Clutch - Disassembly

DISASSEMBLY

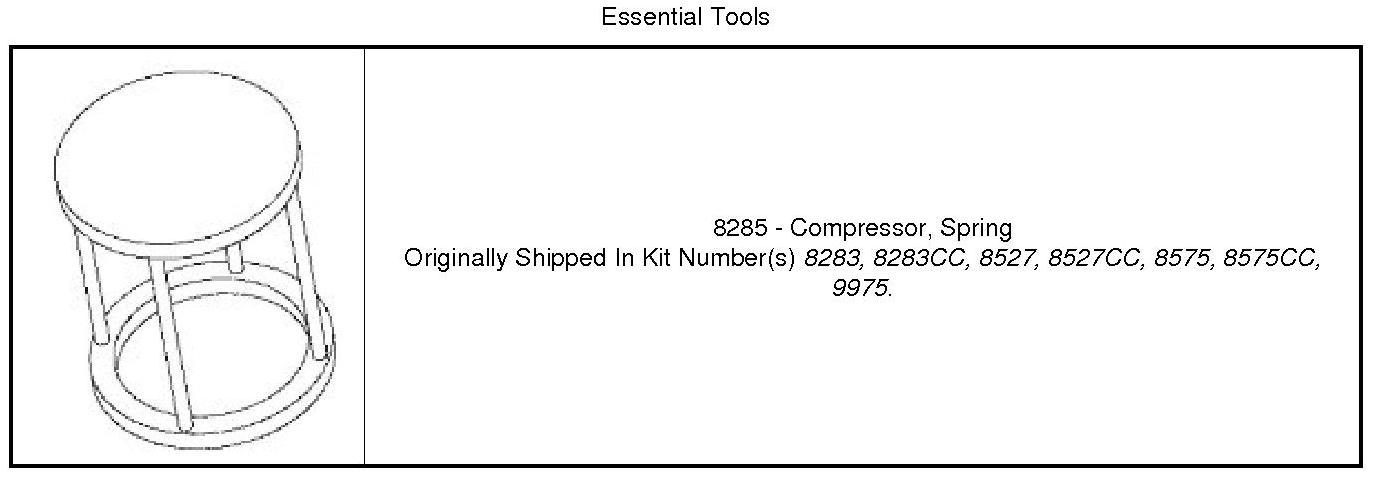

Special Tools:

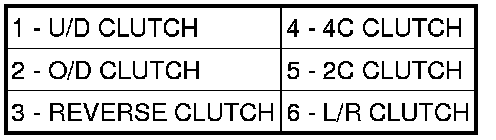

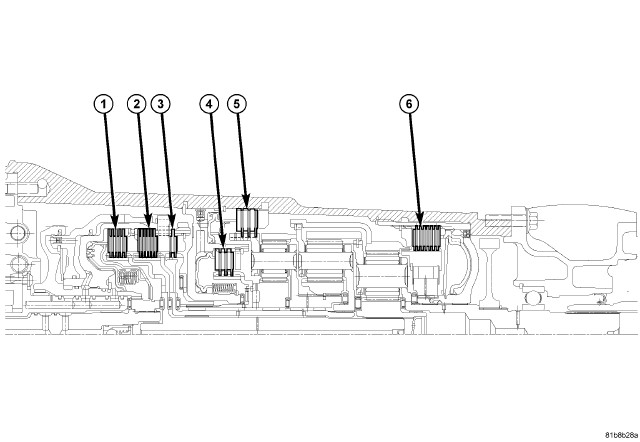

Figure 1 - 66RFE CLUTCH ORIENTATION

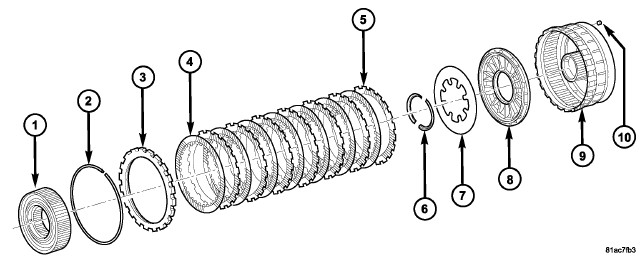

1. Remove the low/reverse reaction plate flat snap-ring (2).
2. Remove the reaction plate (3).
3. Remove the low/reverse clutch (4,5) and the overrunning clutch (1) from the low/reverse clutch retainer (9).
4. Separate the low/reverse clutch (4,5) from the overrunning clutch (1).

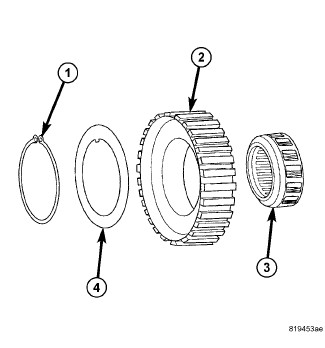

NOTE: The ORC is no longer serviced , it is sold as an assembly only. Be certain that the outer race will rotate in one direction but not both relative to the inner race

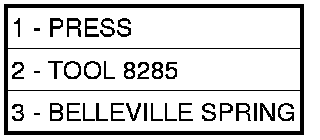

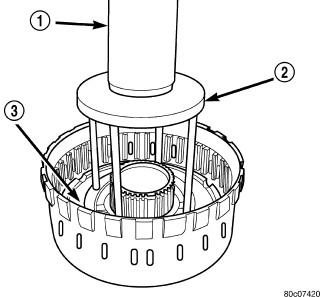

5. Using Spring Compressor (2) and a suitable shop press (1), compress the low/reverse Belleville spring (3) and remove the split retaining ring holding the Belleville spring into the low/reverse clutch retainer.
6. Remove the low/reverse Belleville spring (3) and piston from the low/reverse clutch retainer. Use 20 psi of air pressure to remove the piston if necessary.
