Removal

REMOVAL

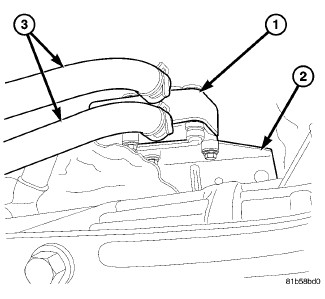

1. Raise and support vehicle.
2. Disconnect electrical connector.
3. Disconnect hoses at pressure differential pressure sensor.
4. Remove mounting bolt and differential pressure sensor.
5. Remove mounting bolts (1).




Figure 2 - PRESSURE DIFFERENTIAL TUBING





6. Remove pressure differential pressure tubing.
