Removal

4X4-COIL OVER

Special Tools:










1. Raise and support the vehicle, Maintenance.
2. Remove the tire and wheel assembly.
3. Support the lower control arm outboard end.

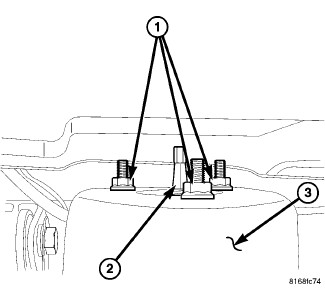

4. Remove the three upper shock nuts (1).





5. Remove the lower shock bolt (6) and nut.

6. Remove the caliper adapter with the caliper Disc Brake Caliper Adapter - Removal.
7. Remove the rotor Brake Rotor - Removal.
8. Disconnect the wheel speed sensor wiring from the knuckle and upper control arm.




9. Remove the upper ball joint retaining nut and separate the upper ball joint (4) from the knuckle (6) using Ball Joint Remover (5).





10. Remove the stabilizer link lower nut (2).
11. Remove the axle hub nut.
12. Remove the shock assembly (1).
